CAN AM SPYDER Raffi Ahmad

Engine

Manufacturer................................BRP-Rotax

Type.............................................. 990 V-Twin

Displacement...............................60.90 in3 (998cc)

Bore.............................................. 3.82 in (97 mm)

Stroke...........................................2 .68 in (68 mm)

Cylinder........................................2

Valves per cylinder.......................DOHC 4

Max output...................................106 hp @ 8500 rpm

(79 kW @ 8500 rpm)

Max torque...................................77 lb-ft @ 6250 rpm

(104.3 Nm @ 6250 rpm)

Compression ratio........................10.8:1

Ignition type.................................Electronic ignition with

dual output coil

Lubrication....................................5W4 0 BRP synthetic oil

Exhaust system.............................2-into-1 with catalytic converter

Cooling.........................................Li quid cooled

Injection........................................M ulti-point EFI with 57 mm

diameter throttle bodies

Drive Train

Gear box......................................Sequentia l Manual 5-Speed (SM5)

with transmission-based reverse

Optional gear box........................Sequential Electronic 5-Speed (SE5)

with transmission-based reverse

Final drive.....................................28/79 ratio final drive with

Carbon-reinforced drive belt

Clutch...........................................W et, multi-plate, manual or electronic

operation through a hydraulic piston

Electric Equipment

Magneto.......................................500 Watt

Starter........................................... Electric

Battery..........................................D ry Cell, 12V, 21 Amp

Geometry

Front suspension..........................Double A-Arm with anti-roll bar

Front suspension travel................5.67 in (144 mm) with adjustable cam

Rear suspension...........................Swing-arm with monoshock

Rear suspension travel.................5.71 in (145 mm) with adjustable cam

Chassis type.................................SST Spyder

(Surrounding Spar Technology)

Steering........................................DP S (Dynamic Power Steering)

Tires & Wheels

Front tire.......................................KR21 165/65R14

Front nominal pressure................13-17 psi (89-117 kPa)

Rear tire........................................KR21 225/50R15

Rear nominal pressure..................26-30 psi (179-207 kPa)

Wheel size, front...........................Aluminum 14x5 (355x127)

Wheel size, rear............................Aluminum 15x7 (381x178)

Brakes

Type..........................................Foot-actuated, fully integrated

hydraulic 3-wheel braking system

Front braking system................4 piston calipers with 10.2 in x 0.25 in

(260 mm x 6 mm) discs

Rear braking system.................Single-piston caliper with 10.2 in x 0.25 in

(260 mm x 6 mm) disc

EBD..........................................Elect ronic Brake Distribution

ABS...........................................Anti-lock Braking System

Parking brake...........................Mechanical, foot actuated to the

rear caliper

Safety & Security

VSS...........................................Vehi cle Stability System

ABS...........................................Anti-lock Braking System

TCS...........................................Trac tion Control System

SCS...........................................Stab ility Control System with

Roll-Over Mitigation

DPS...........................................Dyna mic Power Steering

DESS.........................................Digit ally Encoded Security System

Vehicle Dimensions & Weights

Dry vehicle weight....................697 lbs (316 kg)

Front storage capacity.............2,685 in3 (44 l)

Front max load capacity...........30 lbs (15.9 kg)

Total vehicle load allowed........440 lbs (200 kg)

Fuel capacity............................6.6 US gal (25 l)

Oil capacity..............................1.19 US gal (4.5 l)

Coolant capacity......................0.85 US gal (3.2 l)

GVWR.......................................1,188 lbs (540 kg)

Ground clearance.....................4.5 in (115 mm)

Vehicle overall height...............45.1 in (1,145 mm)

Vehicle overall length...............105 in (2,667 mm)

Vehicle overall width................59.3 in (1,506 mm)

Seat (top) height.......................29 in (737 mm)

Wheel base..............................68 in (1,727 mm)

Wheel track, front.....................51.5 in (1,308 mm)

Type of gas...............................Unleaded, 87 octane minimum

Features & Main Options

Color choices...........................Full Moon

Millennium Yellow

Roadster Red

Instrumentation........................Dual analog and LCD w/speedometer,

tachometer, electric fuel gauge,

daily trip (A & B) meters, engine

temperature, ambient temperature

and gear position indicator. Information

displayed in either metric or US Standards

Main options............................Fog lights, xenon lights,

mono seat cover, racing exhaust pipe,

travel bags, cargo liner, passenger

backrest, low and high windshields

width: 568px; height: 400px;"

Mercedes -SLR - Latest vehicle

BMW - Check Out Latest Vehicle

Motor with many wheels rekor muri

This unique motorcycle tires as much as 16 pieces, each numbered four tires on each side of fruit

MURI Chairman Jaya Suprana try unique motorhome which has 16 tire in Senayan, Jakarta. (Doc Mizzle).

Most Motor With Tire

Photographers - Pool

Motor usually consists of only two or three wheels. However, this motor has 16 wheels. This unique motor any Indonesian Museum of Records holds the record as the largest motorcycle tires.

Modification Honda Retro Scoopy

As a trendsetter skutik retro, AHM Scoopy equip with a thick design with retro-modern impression that has never owned by other manufacturers in Indonesia. The Retro Honda Scoopy Released

Photographers - Syubhan Akib

Motor skutik increasingly diverse. Honda released the Honda Scoopy, a unique skutik with retro-modern design to meet the lifestyle needs of young people in Indonesia

Harley Bermotif Batik dan Candi modification

Transmission gear shifting lever system changed with Jockey Shift or use a hand Harley-Davidson like the old or ancient. (Classic Retro Dok. cycles)tank made to the shape of a lotus flower motif and brass material. Handlebars very unique design also called by the artist Lulut as 'Sungu Kebo' or buffalo horn. Ideas drawn from Javanese buffalo have horns, in terms of Java 'Sungu' a description of the real life of farmers in Java & Indonesia. (Classic Retro Dok. cycles)

Harley batik and Temple

Photographers - Pool

Harley-Davidson Sportster 1200 cc looks special. Javanese motifs melaburi Harley. Do not hesitate, lane X even bother to give a new name for the Harley.

Morgan Aeromax di Indonesia

it is old looks right? Engine with six-speed manual transmission capable of spraying power Aeromax property until 367 hp and ran down to the speed of 270 km / hr.

25/05/2010 18:33

Morgan Aeromax in Indonesia

Photographers - Syubhan Akib

When viewed at a glance, you would think this is an old vintage cars for decades. This car was styled like a car when World War in 1930 until the 1940s.

Morgan Aeromax di Indonesia

width: 568px; height: 400px;"

Mobil Super Hulme CanAm

And so special anymore, other than having a power crazy and would very rarely encountered in the street, Hulme CanAm also feel special because this car is designed directly by the Formula 1 world champion Denny Hulme in 1967 in New Zealand. (Dok. Hulme CanAm).A supercar dream of every person not only because of power and speed, but lso exclusivity is indeed high. Like this one super car, Hulme CanAm.Equipped with rear-wheel drive (rear wheel drive) chassis and body wrapped in carbon fiber, Hulme CanAm is able to satisfy the thirst of the speed enthusiast. (Dok. Hulme CanAm).Cars with a capacity of 7.0 liter V8 engine supplied by General Motors (GM) is capable of generating power up to 592 bhp with a torque of 442 lb-ft.

2010 Techart Aerodynamic Kit II released for the 2010 Porsche 911 Turbo

German tuners TechArt accept appear an updated, anatomic aesthetics amalgamation for the facelifted Porsche 911 Turbo. The Aerodynamic Kit II is meant to accommodate a added different attending to the 911, with an accent on "the continued ancillary band of the car."

New genitalia apparent on the archetypal accommodate a advanced addle-brain with a "multifunctional daytime active ablaze system," comprised of the adjustable-brightness DRLs, about-face signals, parking light, and position ablaze housed in one unit. The advanced and rear aprons amalgamate to advance airflow to the brakes, intercooler, and radiator, while abbreviation lift at the advanced and accretion downforce at the back.

2010 Acura TL A-Spec Specification

Acura has appear the addition in Canada of the 2010 Acura TL A-Spec bound copy package, able May 10, with a Manufacturers Suggested Retail Price of $51,290.

The 2010 Acura TL A-Spec appearance Super Handling All-Wheel Drive (SH-AWD) and includes all of the appearance of the TL SH-AWD Technology Amalgamation trim with either 6-speed chiral manual or 5-speed automated transmission. The TL A-Spec includes the afterward different features:

* 19-inch admixture auto with appropriate summer achievement tires

* Full aero kit brim package; front, ancillary and rear skirts

* Midnight chrome grille and rear piece

* �A-Spec� cast and �A-Spec� attic mats

Acura is the luxury-performance analysis of Honda Canada Inc. Seven audible cartage (CSX, TSX, TL, RL, RDX, MDX and ZDX) are marketed beneath the Acura brand. The Acura ZDX, MDX and CSX are congenital at the Honda of Canada Mfg. accumulation ability in Alliston, Ontario.

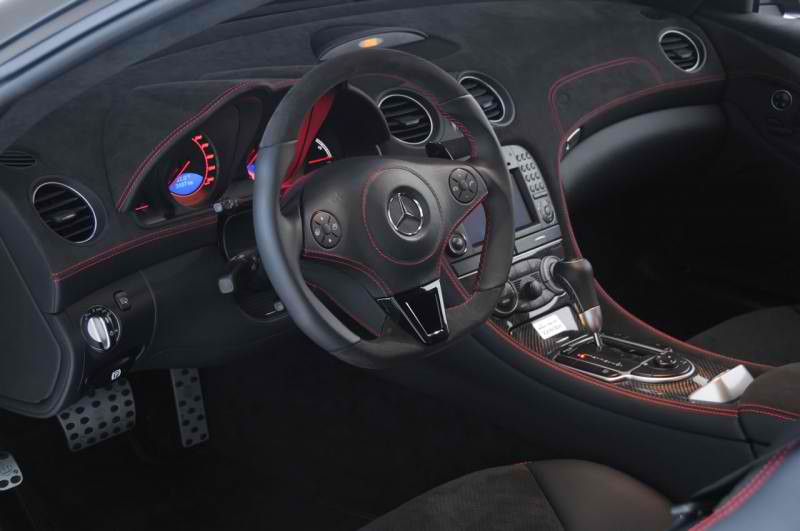

2010 BRABUS T65 RS Mercedes-Benz Specification and wallpaper
